Resistive Load Banks

Introduction

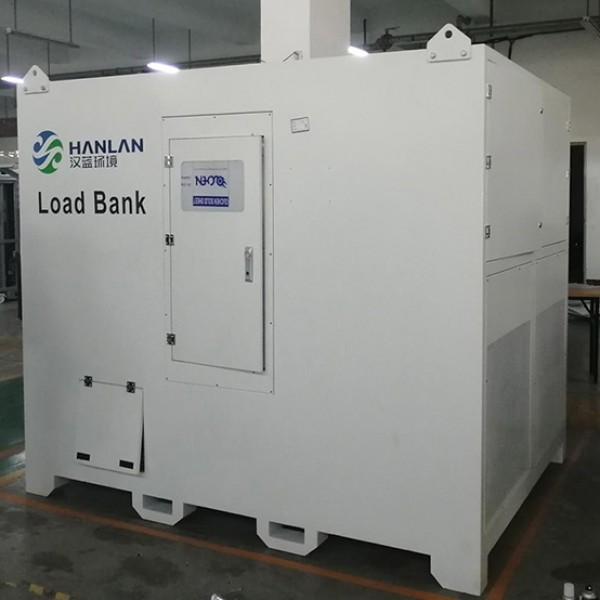

Resistive load bank are available in stationary type for permanent installation(Permanent Load Bank) or portable type(Portable Load Bank) with lifting rings, castors. Larger load banks, typically above 1250KW, are based on an ISO container construction. Special finishes including custom paint colors and stainless steel casings can be supplied.

Main features

1.Control mode: (1)local manual control panel (2)remote manual control box (3) remote console (include manual panel and PC control)(4)laptop control

2. Protection function: overvoltage, overcurrent, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.

3. Cooling: industrial heavy duty blower, horizon air intake, upwards outlet, low noise.

4. Power consumption components: made by special alloy resistance, high temperature resisting, high heat dissipation capability, high heat stability, no naked light, safety and reliability. Running temperature is 1/3 of rating.

5. Weather-proof structure: containerized structure provides ultra protection, protection grade higher than IP55.

6. Material and coating: the body adopt cold-rolled steel plate that processed by galvanizing corrosion protection, powder coated and spray paint.

7. Integrated & modularization design: easy to installation, maintenance and transportation.

Technical Parameters
