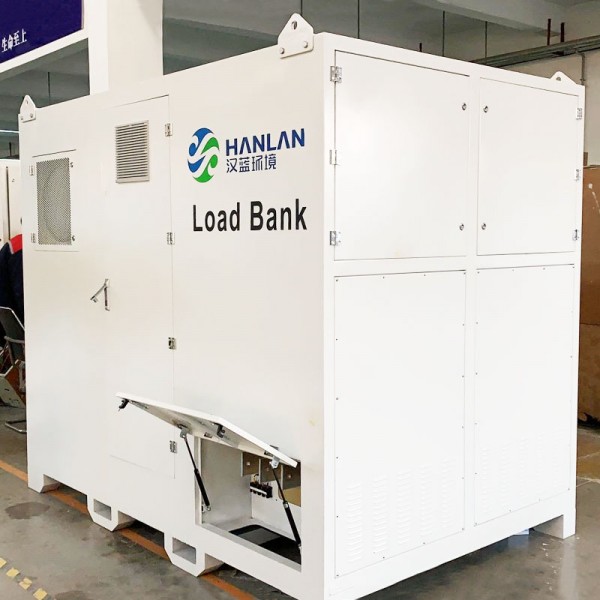

30-1000kW Medium Voltage Load Banks

30-1000 kW load bank for generator load test:
1. Premium components
2. Durable and reliable

3. Easy to transport

Описание

30-1000kW Medium Voltage Load Banks

Product description:
1.Resistive type of load, PF = 1.0. Stainless steel sheathed elements manufactured from high grade magnesium oxide.
2. Rated testing voltage: AC 3P4W, 110-480V 50/60 Hz.
3. Cooling mode: Forced air-cooled, fans mounted on the side of the load bank blow horizontally. Testing power or external utility power supply for fans.
4. Working mode: Load step control
Total testing capacity ranges from 0kw to the max consisting of 10kw, 20kw, 50kw, 100kw load setting switches plus a 0-10kw fine-tuning knob. From 0kw to the max, any load combination is achievable. Load step resolution is 10kw.
5. Load bank features world-famous components to ensure reliable performance and longer service life
6. Parameter measuring accuracy grade: 0.5.
7. Load control accuracy: ±5%.
8. Load bank protections: Over heating protection, cooling fans failure protection and over load protection with alarm.
9. Control mode: Two control modes available:
A) Local manual control;
B) Optional: Manual control via a remote control panel (max control distance is 20m).
10. Parameter display and measurement:
Control panel contains a SOCOMEC Multifunction Electricity Meter displaying voltage, current, load power, reactive power, apparent power, power factor, frequency etc.
(Optional: A professional generator tester displays and measures all sorts of steady, dynamic parameters as well as harmonic wave, can be connected to a PC for data recording and test report printing). "
11. Operating environment:
Altitude: 1000m above sea level. Ambient temp: -10~+40 degree centigrade

Relative humidity: 80% ventilated environment without explosive or corrosive dust. Not allowed to use in rainy outdoor environment.
